01
Signals arrive messy.
Citizen reports, distress messages, weather feeds, traffic incidents, and advisories arrive with different trust and freshness.
CODEEXP · Civic emergency coordination · 2026
One map.
Three roles.
Shared truth.
Kampung Kaki is a live, role-aware map of Singapore for citizens, responders, and operations teams. A citizen can send an SOS, ops can verify and dispatch, and responders can coordinate around the same incident without the usual screenshots, phone chains, or stale dashboards.
3Role-scoped views in one React app
1Canonical state tree shared by every role
6State clusters with explicit ownership
5Stateless edge and live-data routes
QoS 1Retained MQTT delivery and reconnects
0Fabricated values when a provider fails
The problem
Emergency information is usually fragmented.
Residents see one thing, responders receive another, and operators spend valuable time reconciling both. Kampung Kaki treats coordination as a shared-state problem: every role gets the tools it needs, but all of them read and write the same incident lifecycle.
02
Roles need different controls.
A citizen needs a clear SOS path. A responder needs a mission and aid card. Ops needs verification, dispatch, zones, and broadcasts.
03
Networks are not guaranteed.
Emergency software cannot pretend a dropped connection means the action never happened. Retained state and offline queues are core behavior.
One app, three workspaces
The same incident, seen from the right angle.
The three clients are not separate products. They are role-scoped surfaces in the same React bundle, which keeps the data model, map behavior, and event semantics consistent.
Citizen
Ask for help without learning the system.
Live conditions, nearby care resources, report composition, SOS, alerts, and grounded AI guidance sit on one familiar map.

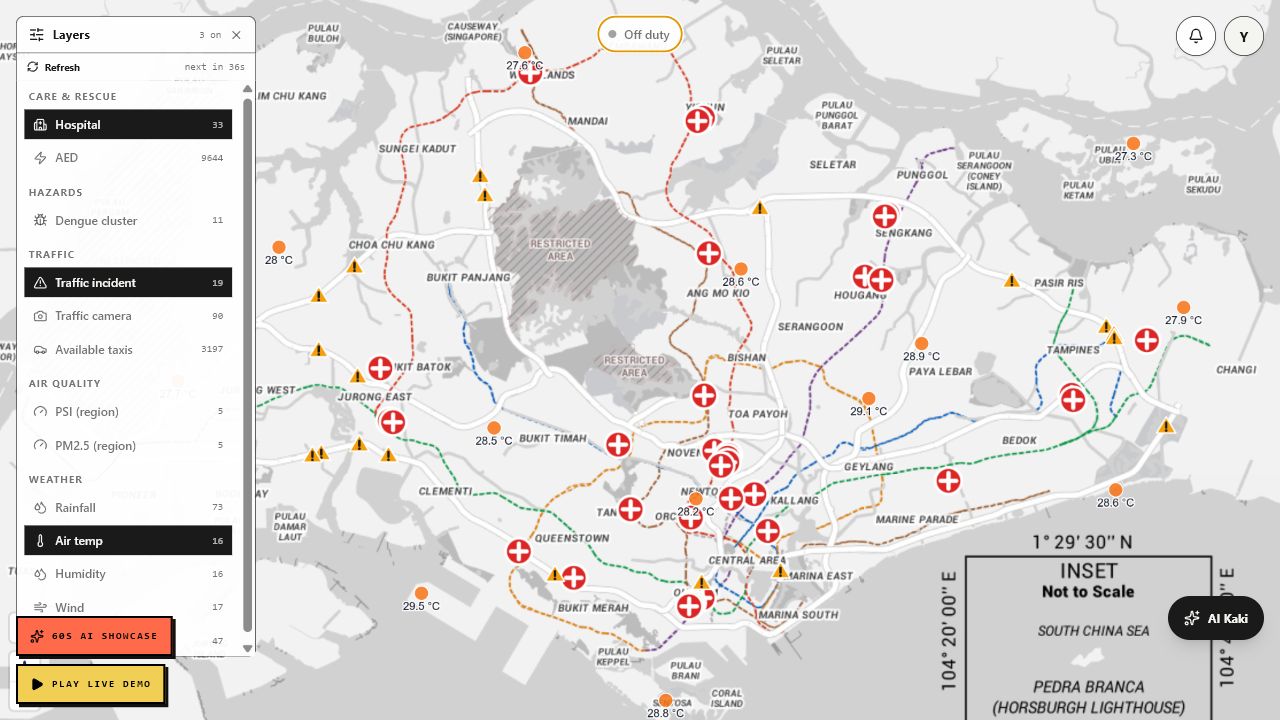

Responder
Turn availability into coordinated action.
Duty state, joinable missions, case rooms, aid cards, capability groups, and queued status updates support work in the field.
Operations
Verify first, then mobilize.
Ops can inspect intake, promote verified events, dispatch responders, draw emergency zones, and publish role-aware broadcasts.
Incident lifecycle
From a thumb tap to a shared response.
The product keeps low-trust intake separate from verified incidents, then creates operational work only after the evidence is good enough. That distinction is what stops a crowded map from becoming a noisy one.
Signal
A resident files a report or starts an SOS session. Live feeds can also emit threshold events.
Verify
Ops reviews evidence, provenance, location, source health, and possible duplicates.
Mobilize
A verified event creates case work, responder assignments, zones, and broadcasts.
Close the loop
Status, chat, acknowledgements, and the audit log remain attached to one canonical incident.

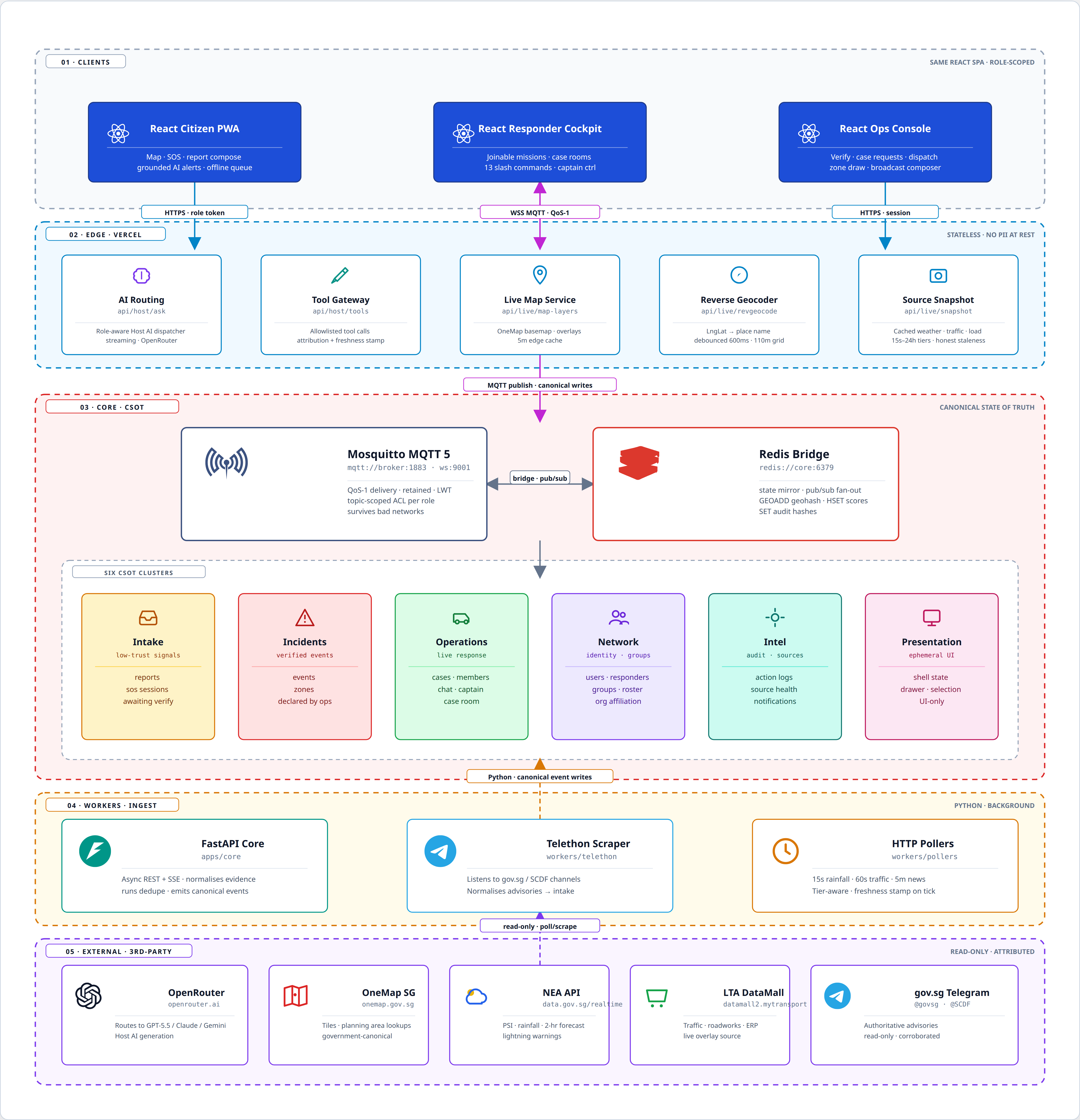

System architecture
The centre of gravity is the CSOT.
The Canonical State Of Truth sits between clients, edge functions, workers, and external providers. Mosquitto MQTT 5 handles retained real-time delivery; Redis keeps the durable mirror and gives background workers a fast read and write path.
Same React SPA · role-scoped chrome
Stateless edge · no PII at rest
Read-only external providers · attributed responses
State model
Six clusters keep ownership explicit.
The CSOT is organized by lifecycle rather than by screen. Each cluster has a primary responsibility, which makes role permissions and cross-role transitions easier to reason about.
01 / intakeIntake
Reports and SOS sessions remain low trust until ops verifies them.
02 / incidentsIncidents
Verified events and declared zones become the publishable source of truth.
03 / operationsOperations
Cases, members, responder state, chat, captains, and live response work.
04 / networkNetwork
Identity, responders, groups, rosters, and organization affiliation.
05 / intelIntel
Source health, action logs, notifications, and situational context.
06 / presentationPresentation
Ephemeral role, drawer, selection, and shell state shared across tabs.
Resilience
Failure is shown, queued, or retried. Never invented.
External providers are allowed to be unavailable. The interface reports stale or missing data explicitly, while state-bearing actions use retained delivery and local queues to survive reconnects.
MQTT
Retained, role-scoped topics
QoS-1 delivery, retained state, access control, and last-will presence let late or reconnecting clients recover the current picture.
EDGE
Small and stateless
AI routing, tool calls, map layers, reverse geocoding, and source snapshots translate requests without becoming another state store.
AI
Grounded or quiet
Provider outputs carry source attribution and freshness. If a tool cannot answer, the host refuses instead of filling the gap with a guess.
Live context
Singapore data becomes operational context.
Public feeds are not decorative layers. They help locate care, understand access constraints, and explain the environment around an incident. Every feed remains read-only and attributed.
OneMap basemap
AED locations
Hospitals
NEA PSI
NEA rainfall
2-hour forecast
Air temperature
Humidity
Wind
LTA traffic incidents
Traffic cameras
Taxi availability
Dengue clusters
gov.sg advisories
Full director demo
Watch one incident move through the whole system.
The recording follows the citizen, responder, and ops clients through a live emergency scenario: grounded assistance, SOS propagation, dispatch, offline behavior, case coordination, and final resolution.
